Products
Video wall & AV processing, end to end
Processors, multi-screen controllers, decoder matrices and seamless switchers — engineered pure-hardware for mission-critical display.
Four families
Every family answers a different signal task
Four series — processors, multi-screen controllers, decoder matrices and seamless switchers. Start from the job; the topology follows. Each family links to its full model line.

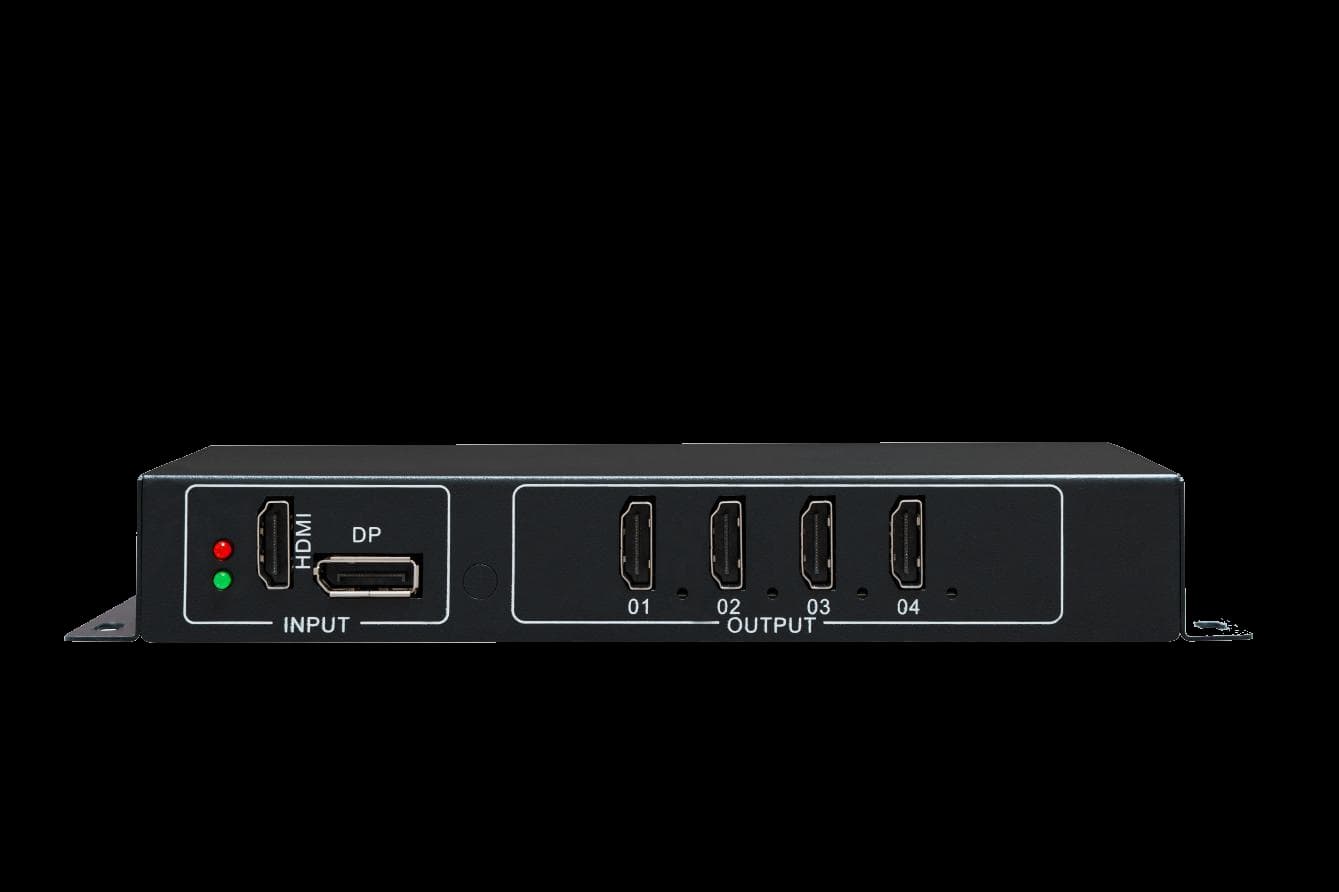

01 / Multi-Screen Controllers
One canvas across many screens
Take one ultra-high-resolution source and spread it across 4, 6 or 9 displays as a single desktop, signage or small-wall canvas.
- Input
- 1 × HDMI 4K
- Output
- 4–9 × HDMI
- Spec when
- Single source, multi-display desktop, budget signage.

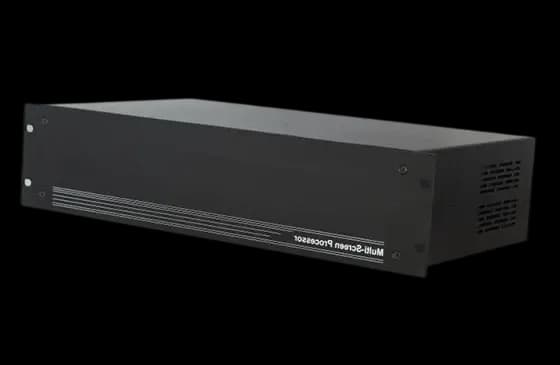

02 / Video Wall Processors
Many sources into one composed wall
Window, roam, overlay and seamlessly switch HDMI, IP and SDI sources across one wall layout — pure hardware, no operating system.
- Input
- HDMI · SDI · IP
- Output
- Wall windows
- Spec when
- Mixed sources, windowing and wall layouts, control rooms.

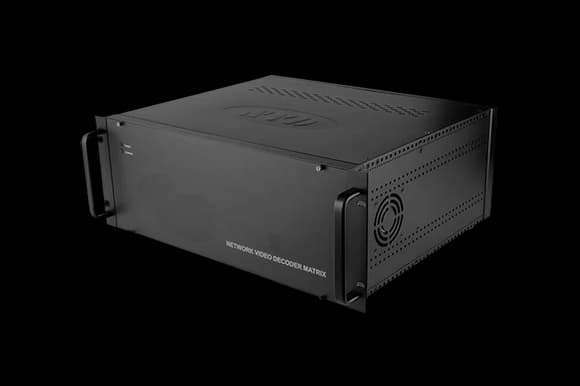

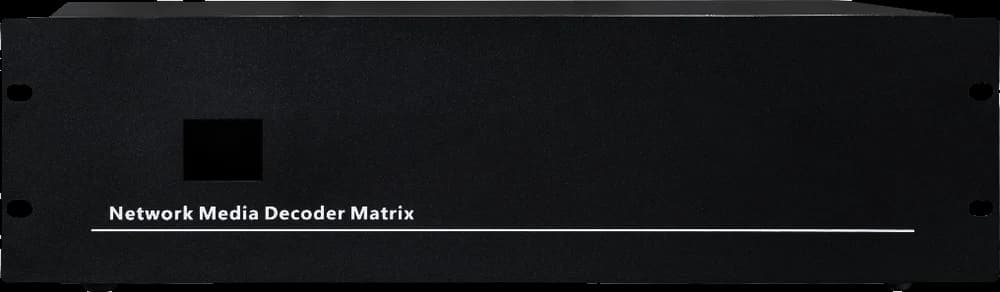

03 / Network Video Decoder Matrices
IP cameras onto a surveillance wall
Decode H.265 / H.264 camera streams over ONVIF / RTSP and place them directly on CCTV monitors and video walls.
- Input
- N × IP · H.265
- Output
- CCTV wall
- Spec when
- Camera networks, CCTV rooms, decoder-per-wall economics.

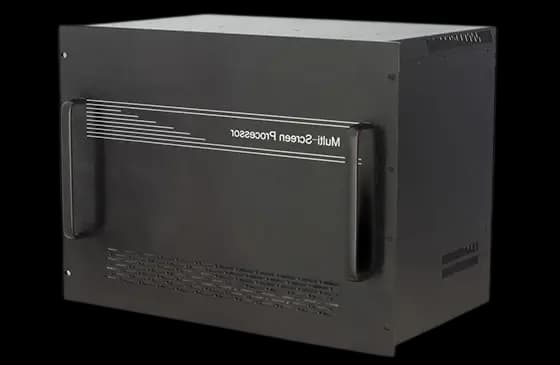

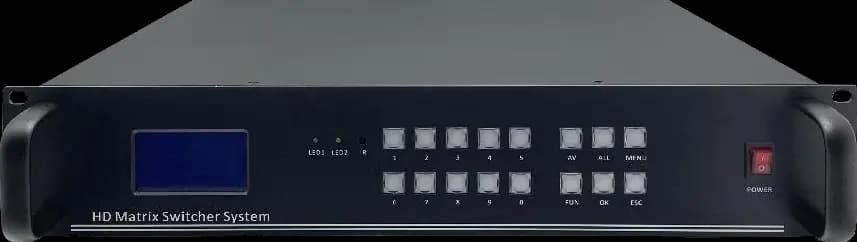

04 / Seamless Hybrid Matrix Switchers
Any AV source to any output
Route HDMI, DVI, VGA, SDI, AV and HDBaseT sources to multiple displays with seamless switching and centralized control.
- Input
- HDMI · DVI · VGA · SDI · HDBT
- Output
- Any / any
- Spec when
- Multi-format routing, presentation spaces, hybrid AV + IP.
Compare at a glance
Four families, one signal chain
| Family | Inputs | Outputs | Typical use |
|---|---|---|---|
| Multi-Screen Controllers | 1 × HDMI / DP | 4 / 6 / 9 × HDMI | Single desktop split across multiple displays |
| Video Wall Processors | HDMI / DVI / VGA / SDI / IP / HDBaseT | Multi-channel to video wall | Many sources, one composed wall |
| Network Video Decoder Matrices | IP streams (ONVIF / RTSP) | HDMI to monitors / wall | Camera streams onto surveillance walls |
| Seamless Hybrid Matrix Switchers | HDMI / DVI / VGA / AV / SDI / HDBaseT | Same formats to any display | Seamless routing in meeting and control spaces |
Still unsure? Which model do I need →
Model Directory
All 15 models, each with its own page
Every model has a dedicated specification page — real parameters, interfaces and datasheet. Pick a series to open its full model list.
Do your video wall processors support 4K input?
Yes — P Series supports 4K60 input via HDMI/DVI/DP input cards (4K30 on output). Check the product page for the exact card mix for your wall.
How do I choose between the video wall processor series?

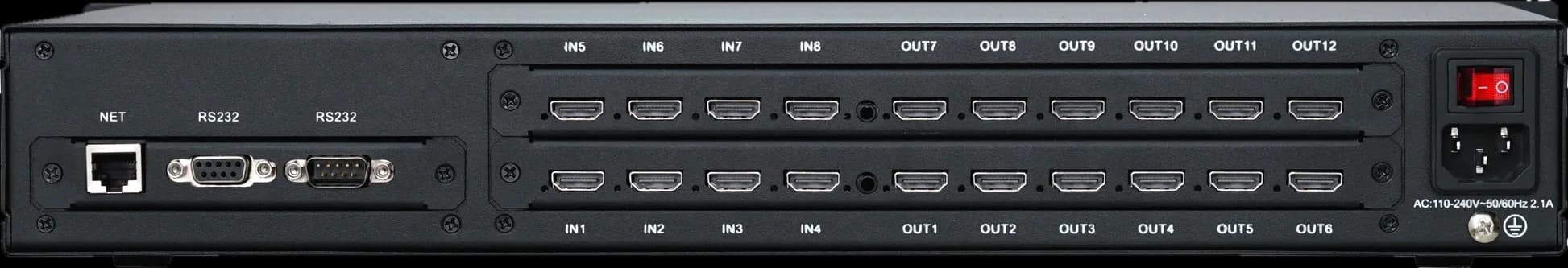

K Series is compact (up to 8 in / 12 out), D Series scales to 40 in / 60 out, P Series adds 4K, IP decoding and LED-friendly features up to 80 in / 80 out. Tell an engineer your wall size and sources — they confirm the right family before any quote.
Can I get OEM / ODM / custom branding?
We support flexible configuration through modular plug-in card design. Please request a quote and our team will confirm OEM/ODM options with our manufacturing partners.
How far can I transmit HDMI signal?
Our HDBaseT extender carries HDMI up to 100m over Cat 6 (cascade to 1km) with 4K support. The 50m network extender provides cost-efficient 1080P transmission over a single Cat 5E/6 cable.
Which camera brands does the video wall decoder support?
The decoder supports ONVIF, RTP-RTSP and GB28181 protocols, and is compatible with Hikvision, Dahua and other major camera brands.
What is the difference between a video wall processor, a multi-screen controller and a matrix switcher?
A multi-screen controller splits one ultra-high-resolution input across 4–9 displays (one source → many screens). A video wall processor composes many sources freely on one wall with windowing, roaming and overlay (many sources → wall layout). A seamless matrix switcher routes any of many inputs to any of many outputs with seamless switching (many sources → any output). Decoder matrices additionally decode IP camera streams onto surveillance walls.
How do I choose the right chassis size for a modular processor?
Modular chassis scale by card slots: D Series offers 3U (2IN+3OUT), 5U (4IN+5OUT) and 8U (10IN+10OUT); P Series offers 3U/5U/8U/14U up to 80 in / 80 out; decoder matrices scale 1U/3U/5U by camera count. Pick the chassis by your input count and wall size — an engineer confirms the exact card bundle before any quote.
Can I mix different signal types in one system?
Yes — P Series and seamless matrix switchers accept mixed input cards (HDMI / DVI / VGA / SDI / HDBaseT / IP / Fiber) in the same chassis, and every input can be routed to any output. K/D Series focus on HDMI; decoder matrices handle ONVIF / RTSP / RTMP IP streams alongside local HDMI inputs.
Unsure which series fits?
Share your wall size, input signals and resolution — our engineers will match the right configuration. An engineer replies within 24 hours.
