VEXWALL

D Series Modular HDMI Video Wall Processor

Modular FPGA processing for large walls — up to 40 inputs and 60 outputs across 3U / 5U / 8U chassis, with pure-hardware reliability and no operating system.

Request a QuoteCompare Series
VEXWALL D Series Modular HDMI Video Wall Processor — product view

Video Wall Processors · D Series Modular HDMI Video Wall Processor

Interface & Specs

Every port, clearly mapped

Complete interface configuration for this model — input, output, control and power. An engineer confirms the exact configuration before any quote.

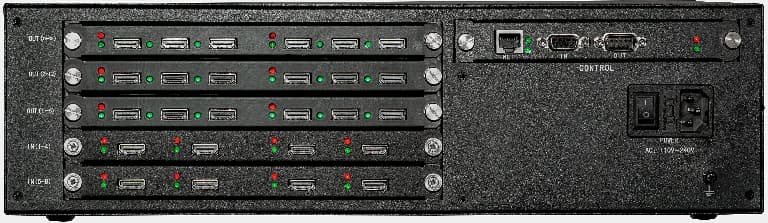

d-series interface diagram

Interface diagram

Chassis
3U / 5U / 8U
Max Input
40
Max Output
60
Card types
1 IN · 1 OUT · 1 CTRL
Capability Matrix

Cards and windows, built to spec

Published values — no rounded numbers, no invented modes.

Input cards · 1
  • HDMI input card4 inputs per board, HDMI 1.3, embedded audio, up to 1920×1080@60Hz, progressive only
Output cards · 1
  • HDMI output card6 outputs per board, HDMI 1.3, up to 1920×1080@60Hz
Control · 1
  • Control card1×RJ45 (100Mbps), 1×DB9 female (RS232), 1×DB9 male (RS232)
Windows per output
2 windows
Windows per card
8 shared windows
Real Hardware

Real hardware, front and back

Actual front and rear panels of this exact model.

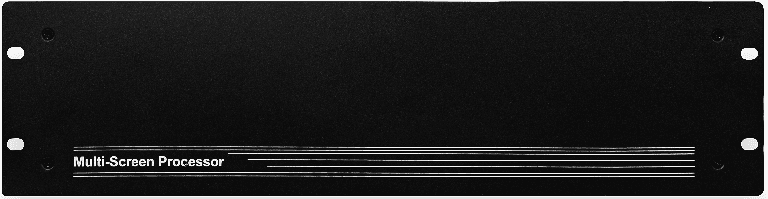

d-series hardware photo — D-series-003
Front panel

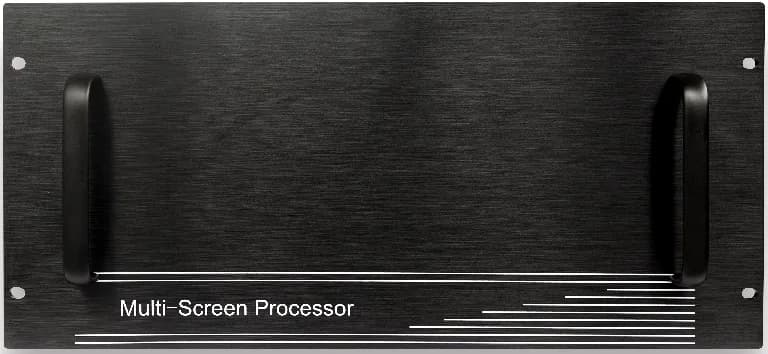

d-series hardware photo — D-series-004
Front panel

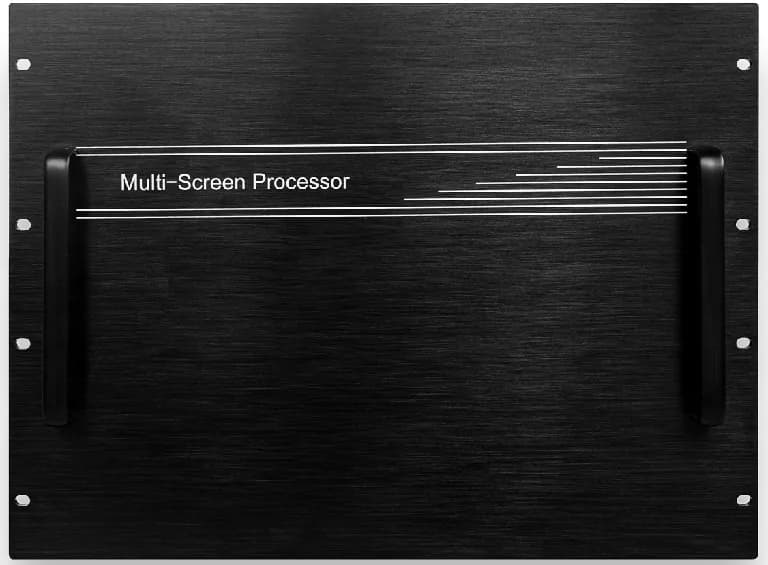

d-series hardware photo — D-series-005
Front panel
System Wiring

How signals flow

The complete signal path — sources, processing and displays.

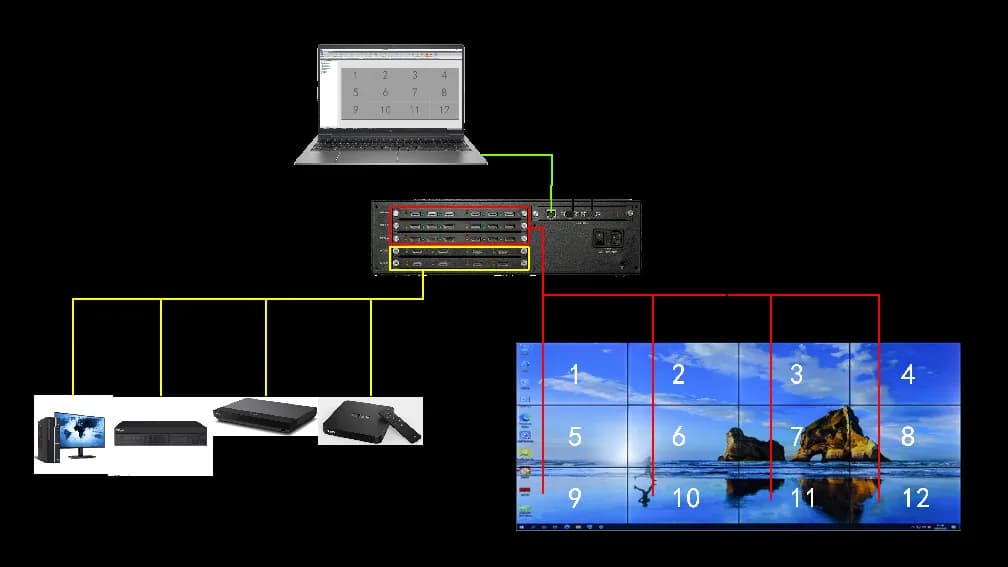

d-series system wiring diagram

Wiring diagram

Specifications

D Series Modular HDMI Video Wall Processor — key specifications

Architecture
Pure-hardware FPGA, no operating system
Capacity
40 in / 60 out / 60 screens
Max Resolution
1920×1080@60
Layers per Screen
2
Chassis
3U (2 in + 3 out) / 5U (4 in + 5 out) / 8U (10 in + 10 out)
Input Cards
4 × HDMI 1.3 per board
Output Cards
6 × HDMI 1.3 per board
Power Consumption
Up to 350 W
Power Supply
AC power input 50/60Hz
Control
RJ45 + RS232

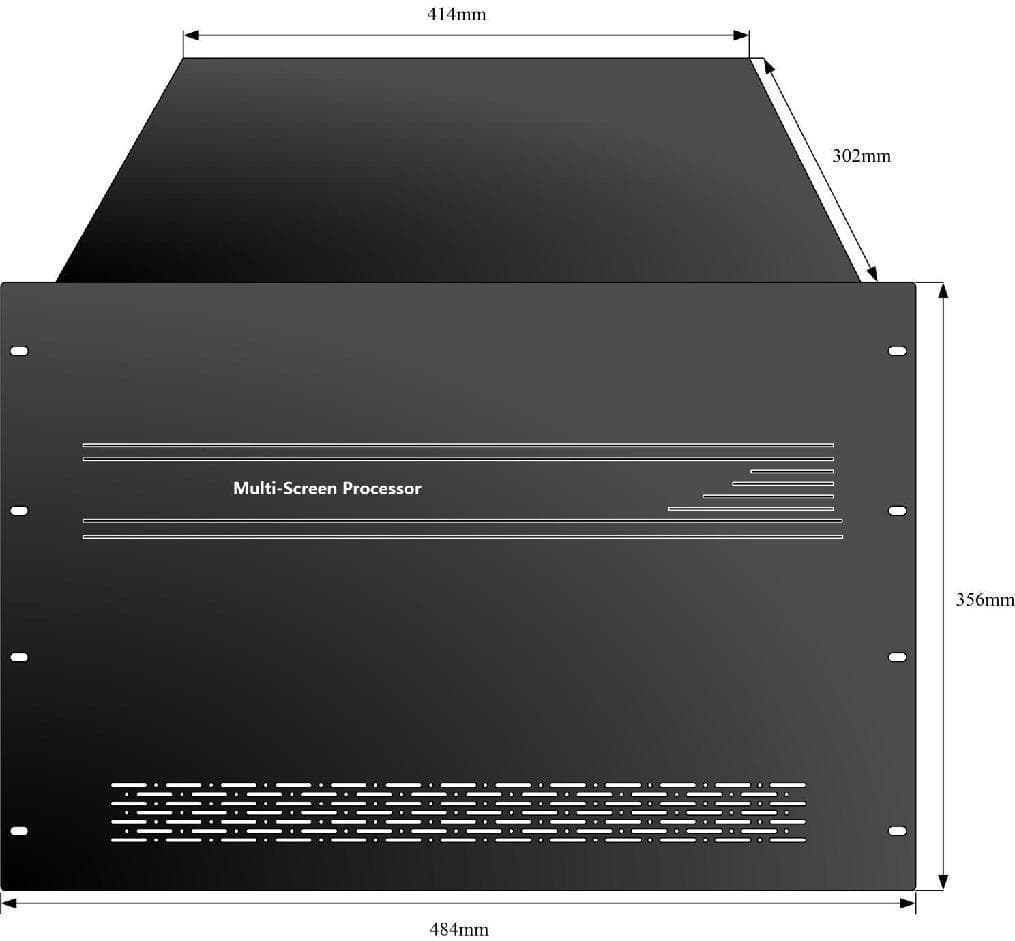

D Series Modular HDMI Video Wall Processor dimensions
Dimensions

Chassis & card bundle

D Series Modular HDMI Video Wall Processor — built as one system

Modular input/output cards — the chassis defines how many cards the system takes.Max scale: 40 in / 60 out

Modular chassis with input and output cards — VEXWALL systems are built as one bundle

Chassis + input cards + output cards

3U chassis
up to 40 in / 60 out
2IN + 3OUT card slots

Small–mid video walls (4×4, 5×5)

5U chassis
up to 40 in / 60 out
4IN + 5OUT card slots

Mid–large conference & command rooms

8U chassis
up to 40 in / 60 out
10IN + 10OUT card slots

Large control & monitoring walls

Every bundle is confirmed by an engineer against your signal list before any quote.

Configure your bundle
Compare Series

Pick the right processing tier

VEXWALL K Series Compact HDMI Video Wall Processor — front view

K Series Compact HDMI Video Wall Processor

Compact 1.5U modular video wall processor — up to 8 inputs and 12 outputs on pure-hardware FPGA processing with no operating system. Ideal for small and medium splicing walls.

View series
VEXWALL D Series Modular HDMI Video Wall Processor — front view

D Series Modular HDMI Video Wall Processor

Modular FPGA processing for large walls — up to 40 inputs and 60 outputs across 3U / 5U / 8U chassis, with pure-hardware reliability and no operating system.

View series
Current
VEXWALL P Series Professional Modular Video Wall Processor — front view

P Series Professional Modular Video Wall Processor

Professional modular platform for 4K, IP and LED walls — up to 80 inputs and 80 outputs in up to 8 wall groups, with multi-format input/output cards, IP decoding and LED-friendly features.

View series

Spec the D Series Modular HDMI Video Wall Processor

Tell us your input sources, outputs and wall size — we will confirm configuration, pricing, MOQ and lead time.

Request Datasheet
